Operator and Display
Equipment. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Back |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Control and presentation equipment for Jagdschloss. (OKL
Gen.Nafü."Vorläufige Kurzbeschreibung und Bedienungsanweisung"). |
|
|
|
|
|
|
|
|
|
|
Front view of Jagdschloss Plan Position Indicator.
(Source as above). |
|
Control equipment for the Video Extractor used to
transmit the picture to remote sites up to 50 km away. |
|
|
|
|
|
|
|
|
|
|

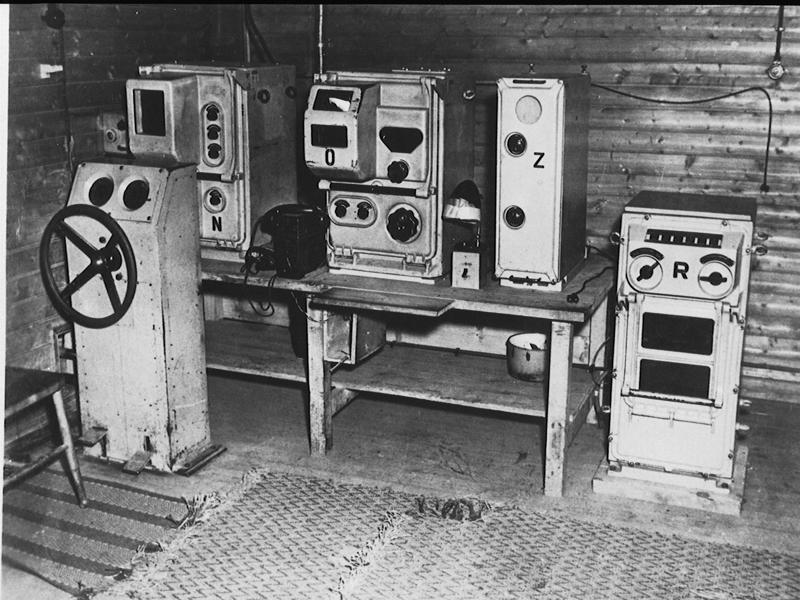

The display equipment in a
Mammut F in BUFFEL, Blåvand. Please note the operator position to the
left. The pedals were used to select the forward or back antenna.
The wheel was used to select the direction of the sweep. |
|

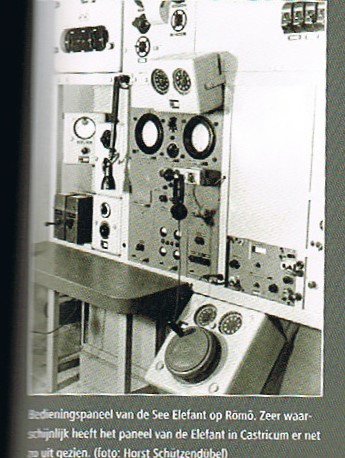

The display equipment for
the See-Elefant (Russel) at ROBBE (Rømø). This is to the best of my
knowledge the first time such a picture has become available and been
published. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
