  The two drawings below of the Grosse Elefant are based on materiel received from Herr. F. Trenkle in 1990, and depict part of the system at MAX by Castricum ann Zee deployed in 1944.  The bunker drawing is based on BRV materiel.
  According to Hoffmann the Elefant system was deployed as follows:
  Warna, Bulgaria.  Four systems arrayed in a square to cover 360 dg.  The parent unit seems to have been named Komp. z.b.V. 3.
  Bologna, Italy one system, details unknown.
  And the system mentioned in the Netherlands.

  Based on Trenkle's book and material, which generously has been made available by Klaas van Brakel in 2008, the system consisted of a Grosse Elefant transmitter, a receiver and a Kleine Elefant (transmitter ?).  The elements were arrayed as depicted on the map below.


  German, wartime map depicting the location of the three elements in Wn 38L.   Wartime sketch, seen towards the west, depicting the three elements.

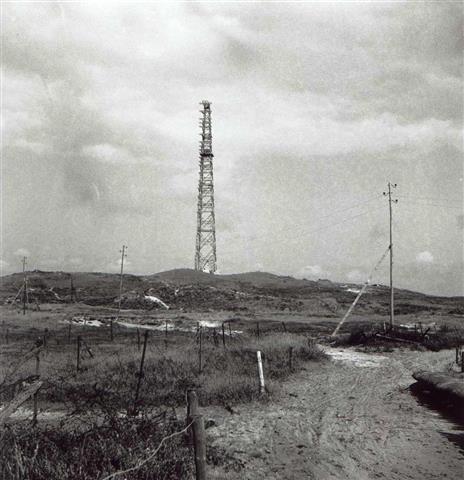

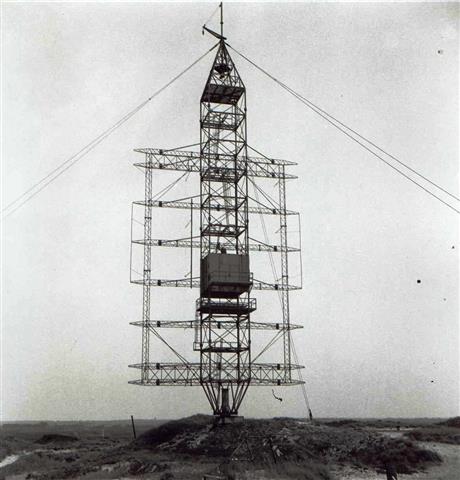

  Grosse Elefant transmitter.  The system radiated in a fixed 90 dg angle.   Elefant receiver.  The mast is a Wassermann M IV, the antenna is the same as used in the Klein Heidelberg.  Please note, not the same scale as the drawing opposite.




  The very conspicious shadow of the Grosse Elefant transmitter.   The  shadow of the reciever.

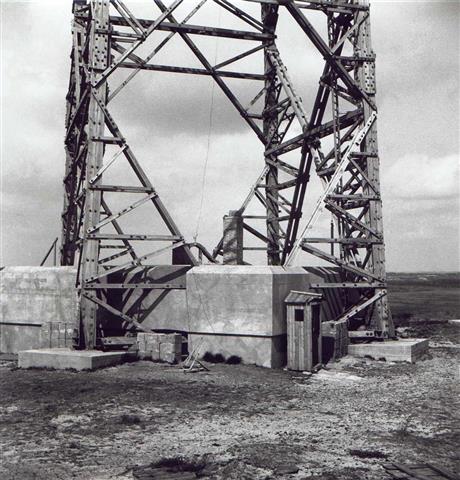

  Foundation and bunker associated with the Grosse Elefant transmitter.   Foundation associated with the Kleine Elefant transmitter.  Sketch based on German construction drawing.

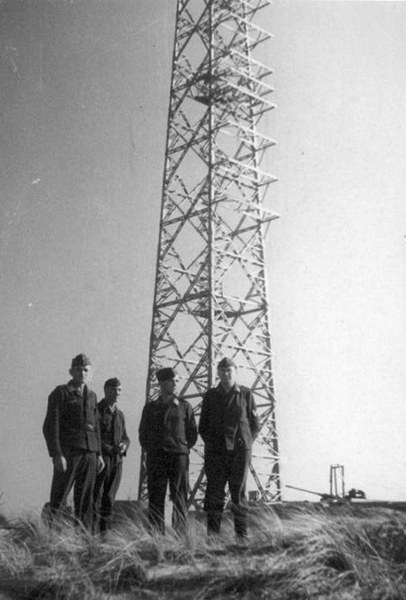

       The only known picture of the Kleine Elefant found by Jos in June 2016.
